Here is the range of Arm Tapping Machines we make passionately.
Flexible Arm Tapping Machines - SQ Series
AXIOS SQ Series of Tapping Arm is a combination of Heavy Casting Structure and Fabricated box type structure which enables the Swing Arm Tapping machine to absorb very high torque generated during high pitch threads upto M48 x 5mm pitch.
M48 Flexible Arm Tapping Machine
Model-48075SQ
M48 x 5mm Pitch Cap. Flexible Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1100mm
- Bearing Supported smooth yet rigid hinges

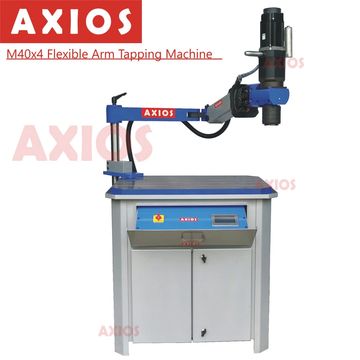

M40 Servo Arm Tapping Machine
Model - 40225SQ
M40 x 4mm Pitch Cap. Servo Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1100mm
- Bearing Supported smooth yet rigid hinges
Swing Arm Tapping Machines - TR Series
AXIOS Fastest Arm Tapping Machines has very low cycle times for Tapping. This Swing Arm Tapping Machine with 1700 Tapping Arm radius can be used for a variety of size of jobs.. This fastest Swing Arm Tapping Machine reduces the most hassles and costly toolings ang tools holders used in CNC Machines.
M33 Automatic Arm Tapping Machines
Model - 33300TR
M33 x 3.5 mm Pitch Cap Automatic Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1700 mm
- High Speed 300 RPM for M33 Tapping on this Swing Arm Tapping
M24 Swing Arm Tapping Machines
Model - 24300TR
M24 x 3 mm Pitch Cap Swing Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1700 mm
- High Speed 300 RPM for M24 Tapping on this Swing Arm Tapping
- Reverse speed upto 450 RPM for low cycle time
M16 Swing Arm Tapping machine
Model - 16450TR
M16 x 2 mm Pitch Cap Swing Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1700 mm
- High Speed 450 RPM for M16 Tapping on this Swing Arm Tapping
- Reverse speed upto 450 RPM for low cycle time
M12 Swing Arm Tapping machine
Model - 12900TR
M12 x 1.75 mm Pitch Cap Swing Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1700 mm
- High Speed 450 RPM for M16 Tapping on this Swing Arm Tapping
- Reverse speed upto 450 RPM for low cycle time
Flexible Arm Tapping Machines - DB Series
This DB Series of Arm Tapping machines with Tapping Arm radius of 1100mm, gives cost effective solution for High Speed Tapping. AXIOS Fastest Swing Arm Tapping Machines have very low cycle times for Tapping. A combination of Tapping Arm with VMC Machines or HMC Machines can reduce the cycle time drastically.
M33 Automatic Arm Tapping Machines
Model - 33300DB
M33 x 3.5 mm Pitch Cap Automatic Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1100 mm
- High Speed 300 RPM for M33 Tapping on this Swing Arm Tapping
M24 Swing Arm Tapping Machines
Model - 24300DB
M24 x 3 mm Pitch Cap Swing Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1100 mm
- High Speed 300 RPM for M24 Tapping on this Swing Arm Tapping
- Reverse speed upto 450 RPM for low cycle time
M16 Swing Arm Tapping machine
Model - 16450DB
M16 x 2 mm Pitch Cap Swing Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1100 mm
- High Speed 450 RPM for M16 Tapping on this Swing Arm Tapping
- Reverse speed upto 450 RPM for low cycle time
M12 High Speed Arm Tapping Machine
Model - 12900DB
M12 x 1.75 mm Pitch Cap Swing Arm Tapping Machine
- Mitsubishi Japan Make Controller
- Tapping Arm Radius 1100 mm
- High Speed 900 RPM for M12 Tapping on this Swing Arm Tapping
- Reverse speed upto 900 RPM for low cycle time

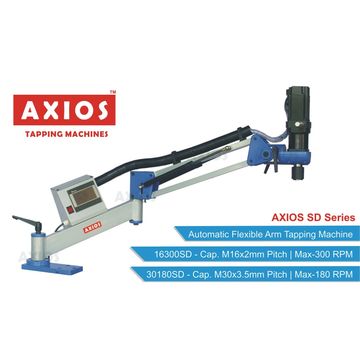

Flexible Arm Tapping Machines - SD Series
SD Series of AXIOS Arm Tapping Machines is highly budgetary solution for Tapping. These Tapping Arm Machines beats any China Tapping Machine in cost as well as value for money. This SD Series of AXIOS Swing Arm Tapping Machines are most compact among all.
M30 Pitch Control Arm Tapping Machine
Model - 30140SD
M30 x 3 Cap Pitch Control Arm Tapping Machines
- Very Compact Machine
- Tapping Arm Radius 1100 mm
- Lowest Cost Economical Solution among Swing Arm Tapping Machines
M16 Magnet Base Arm Tapping Machine
Model - 16300SD
M16 x 2 Cap Pitch Control Arm Tapping Machines with Magnet Base Arm Tapping Machine Version
- Very Compact Machine
- Tapping Arm Radius 1100 mm
- Low Cost Economical Solution among Swing Arm Tapping Machines
